Tow bar wiring

Postby giorgioyk » Sat Sep 29, 2012 1:46 pm

Hi

I have just installed a new tow bar for my 2009 vrx lancer. I still need to install a wiring harness for it, can i just splice it into the existing brake lights/ indeicators etc?

Cheers

Edited..Instructions added


User avatar
aspir3
Site Admin
Site Admin
Posts: 8374
Joined: Tue Oct 27, 2009 6:15 pm
Location: adelaide

Postby aspir3 » Sat Sep 29, 2012 3:48 pm

I am not saying you can because Mitsubishi say you need there wiring loom for the towbar but mine is spliced in and I have not had any problems.

I chose to splice in because Mitsubishi's wiring loom was more then the towbar.
Nice work Skip' now where the bloody hell is Sunny?

Please check out my GARAGE and feel free to leave a comment.

bumblebee
Lancer Legend
Lancer Legend
Posts: 1045
Joined: Mon Jun 12, 2017 7:22 pm
Location: Australia

Re: Tow bar wiring

Postby bumblebee » Sat Jun 24, 2017 9:14 pm

I bought my towbar and wiring as a kit from "aranda towbars" it came with a wiring kit with an electronic controller that takes the load off the oem wiring. Got it delivered for under $400 and fitted it myself. Not too tough to do and works a treat

Merrin88
Lancer Learner
Lancer Learner
Posts: 8
Joined: Sun Jul 16, 2017 5:58 pm

Re: Tow bar wiring

Postby Merrin88 » Mon Jul 17, 2017 10:45 am

I have bought an OEM towbar and wiring kit from an auto wreckers. I've attached the towbar but I can't find where the wiring harness should plug in. It's supposed to be a plug and play kit but not sure where the plugs are hidden in the boot area.
Any help would be appreciated!
(2012 Lancer sportback)

User avatar
lancerdarryl
Lancer Legend
Lancer Legend
Posts: 1168
Joined: Wed Jul 14, 2010 3:10 am
Location: Newcastle NSW Australia

Re: Tow bar wiring

Postby lancerdarryl » Mon Jul 17, 2017 12:18 pm

The unit plugs in on the left side rear guard. You have to remove some boot trims to access the wiring harness. And you need to drill a hole to feed the harness down to the tow bar (with the trailer plug removed)
Evolution X MR+ Lancer VRX Sportback +LA Lancer GSR
"Don't back off until you hit something"

bumblebee
Lancer Legend
Lancer Legend
Posts: 1045
Joined: Mon Jun 12, 2017 7:22 pm
Location: Australia

Re: Tow bar wiring

Postby bumblebee » Mon Jul 17, 2017 12:27 pm

When i put my wiring in for the trailer plug i never drilled a hole anywhere in the boot to run it down.i can't remember how i did it but there was definitely no hole drilled.

Merrin88
Lancer Learner
Lancer Learner
Posts: 8
Joined: Sun Jul 16, 2017 5:58 pm

Re: Tow bar wiring

Postby Merrin88 » Mon Jul 17, 2017 12:57 pm

I've removed the left boot trims but there's no plugs that fit the same as the wiring harness. Do I need to remove the rear bumper bar to access it?

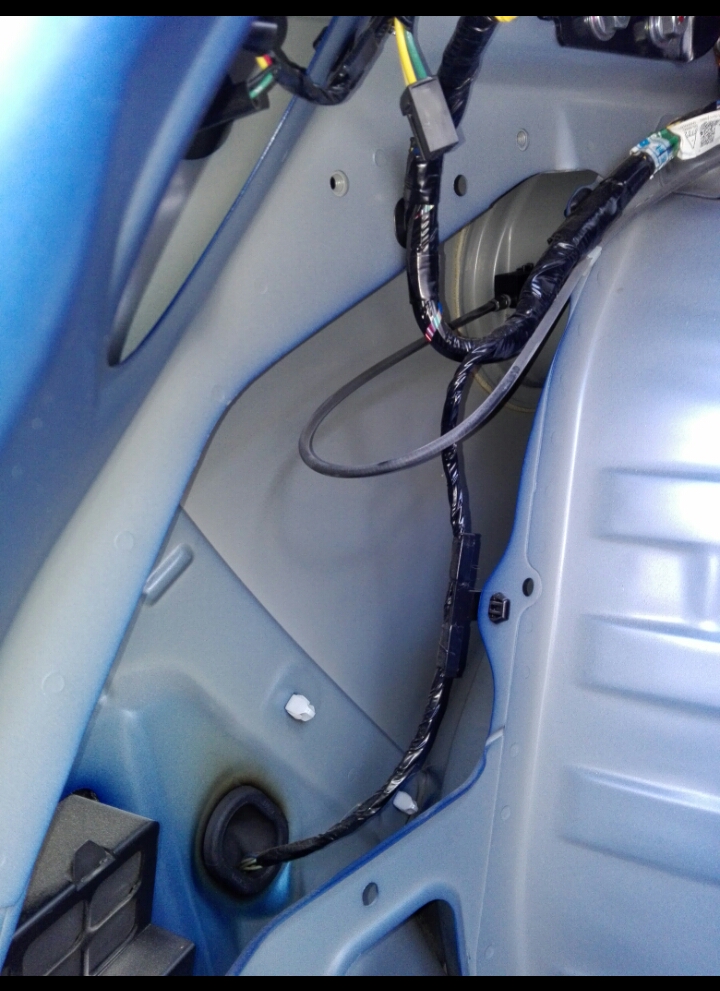

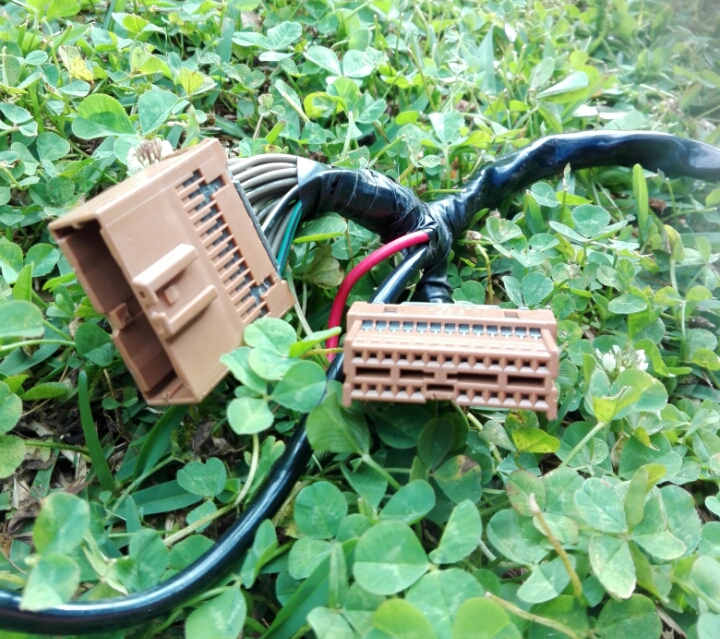

This is a photo of the wiring harness and the wires just behind the rear left wheel arch


Online
User avatar
Lancer1993
Genius
Genius
Posts: 4330
Joined: Sat Dec 06, 2014 12:46 pm
Location: Caloundra
Contact:

Re: Tow bar wiring

Postby Lancer1993 » Mon Jul 17, 2017 3:53 pm

Thought it might be weird they include a plug in option but no grommet to run the wire outside the boot.

Do some simply run a flat wire through the boot lid and out to the trailer, okay solution for the occasional use but could stuff up the weather sealing strip over time?
My rides CJ VRX - CC coupe

Merrin88
Lancer Learner
Lancer Learner
Posts: 8
Joined: Sun Jul 16, 2017 5:58 pm

Re: Tow bar wiring

Postby Merrin88 » Mon Jul 17, 2017 3:58 pm

It has a grommet to run it outside, just not caught in the photo. I called a towbar shop and they seemed to think I'd have to remove one of the seats to access the plug. Does that sound right?

Merrin88
Lancer Learner
Lancer Learner
Posts: 8
Joined: Sun Jul 16, 2017 5:58 pm

Re: Tow bar wiring

Postby Merrin88 » Mon Jul 17, 2017 4:30 pm

So I ended up removing the back seat incase it was there but it's not. Unless the plug is hiding somewhere under the carpet in the rear seats, I can't figure out where else it would be because the cable isn't long enough to go too much closer to the front

Online
User avatar
Lancer1993
Genius
Genius
Posts: 4330
Joined: Sat Dec 06, 2014 12:46 pm
Location: Caloundra
Contact:

Re: Tow bar wiring

Postby Lancer1993 » Mon Jul 17, 2017 4:53 pm

That reminds me there is a LOT of wiring on the left side over the wheel arch, but to access it you need to remove the bottom part of the back seat, then unbolt the side bolster on the left. I don't remember if there were any plugs and yes it would be a weird place to put on for a tow bar lighting harness.
My rides CJ VRX - CC coupe

User avatar
lancerdarryl
Lancer Legend
Lancer Legend
Posts: 1168
Joined: Wed Jul 14, 2010 3:10 am
Location: Newcastle NSW Australia

Re: Tow bar wiring

Postby lancerdarryl » Mon Jul 17, 2017 5:02 pm

Keep looking it's definitely in there!
Evolution X MR+ Lancer VRX Sportback +LA Lancer GSR

"Don't back off until you hit something"

Merrin88
Lancer Learner
Lancer Learner
Posts: 8
Joined: Sun Jul 16, 2017 5:58 pm

Re: Tow bar wiring

Postby Merrin88 » Mon Jul 17, 2017 5:52 pm

I did find about 3 plugs along the wheel arch under a panel. One of them turned off the left indicator when unplugged but the wiring I've been supplied with doesn't fit in that plug. Maybe I have been sent the incorrect wiring harness?

bumblebee
Lancer Legend
Lancer Legend
Posts: 1045
Joined: Mon Jun 12, 2017 7:22 pm
Location: Australia

Re: Tow bar wiring

Postby bumblebee » Mon Jul 17, 2017 6:57 pm

I bought one of these a few years ago it came with the towbar from these guys.
Put this number into ebay
331797310474

Its not cheap but it works a treat. It has an ECU in it so it takes the load off the stock vehicle wiring and wont give any errors or fault codes due to excess load on the lighting circuits or cause any fuses to blow.
Worth its weight in gold

Online
User avatar
Lancer1993
Genius
Genius
Posts: 4330
Joined: Sat Dec 06, 2014 12:46 pm
Location: Caloundra
Contact:

Re: Tow bar wiring

Postby Lancer1993 » Mon Jul 17, 2017 8:07 pm

Never had this issue in any other older cars I've wired for a tow bar.

Good to keep in mind depending what a tow bar kit comes with.
My rides CJ VRX - CC coupe
